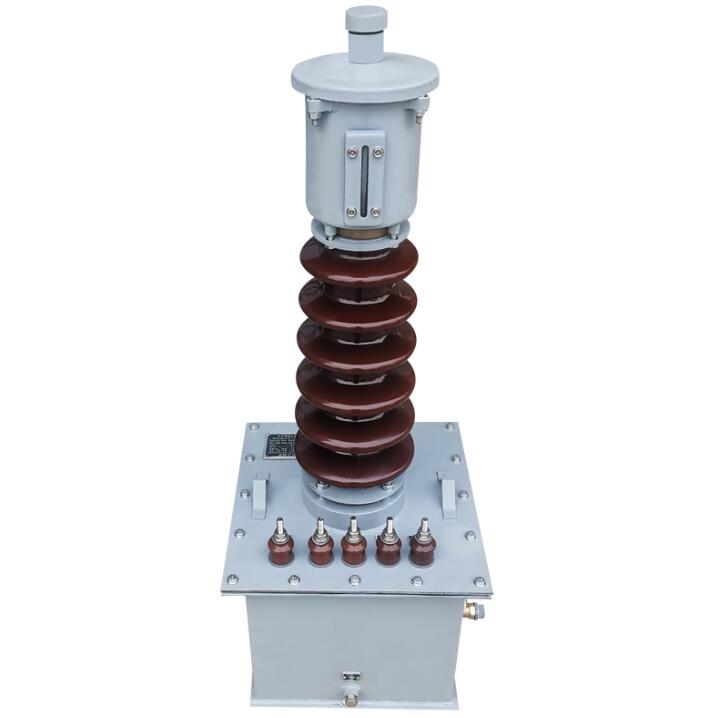

JDJJ2-35 oil-immersed voltage transformer, the product consists of a fuel tank and a porcelain sleeve installed on it. The bottom of the lower fuel tank is provided with an oil drain plug, a grounding bolt and a 4-∮4mm mounting hole . The oil conservator is installed on the top of the high-voltage porcelain sleeve on the upper part of the product tank, and the transformer oil conservator is attached with the terminal A of the primary winding (the primary N end is installed in the secondary junction box). The body fixed in the lower fuel tank consists of an iron core and a coil. The iron core is made of strip-shaped silicon steel sheets stacked into a three-column type, the middle core is covered with a coil, and the residual voltage winding, the secondary winding and the primary winding are wound on the insulating skeleton close to the core in turn, and the windings are separated by insulating cardboard. , The product is a fully sealed structure, which can effectively prevent the agingof the insulation.
